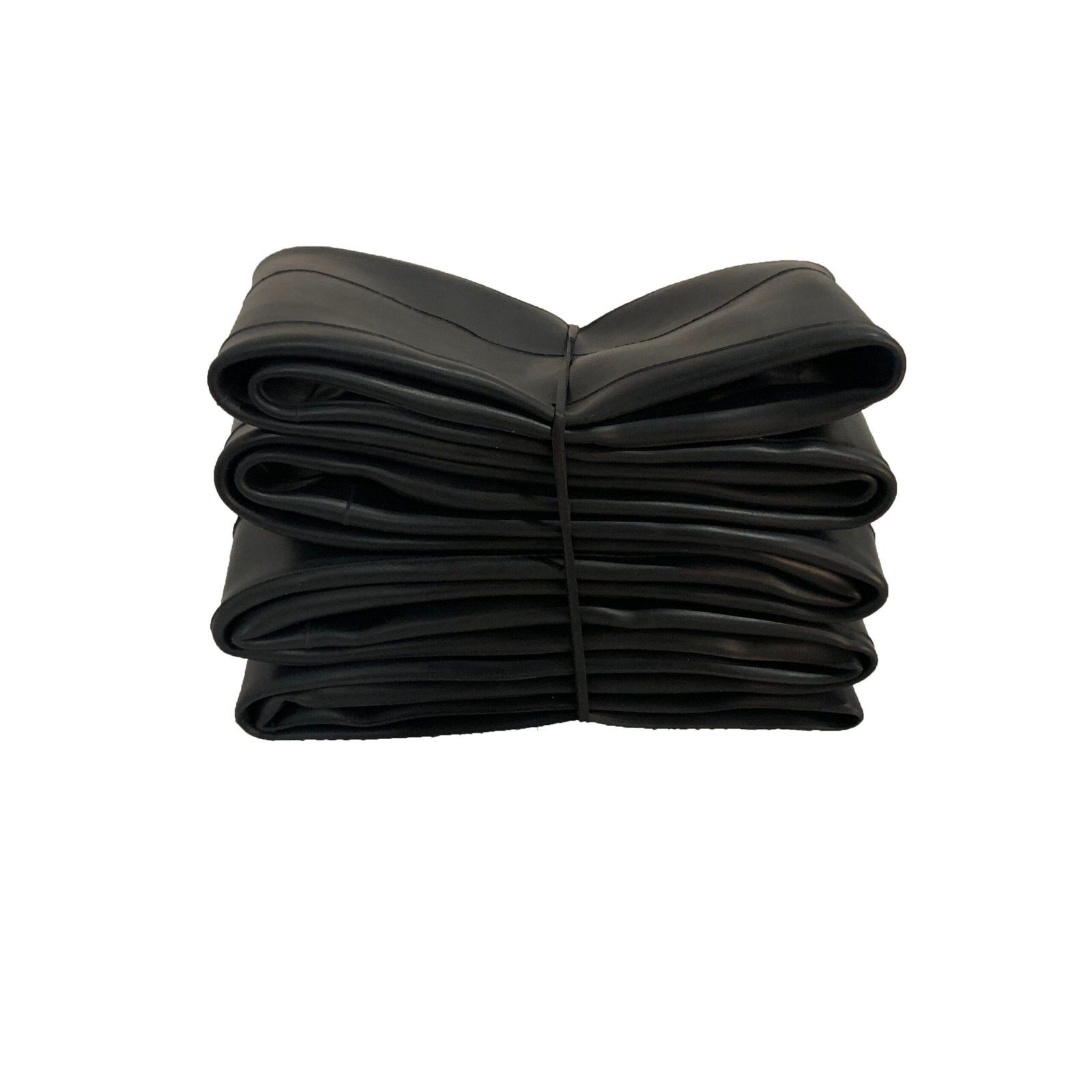

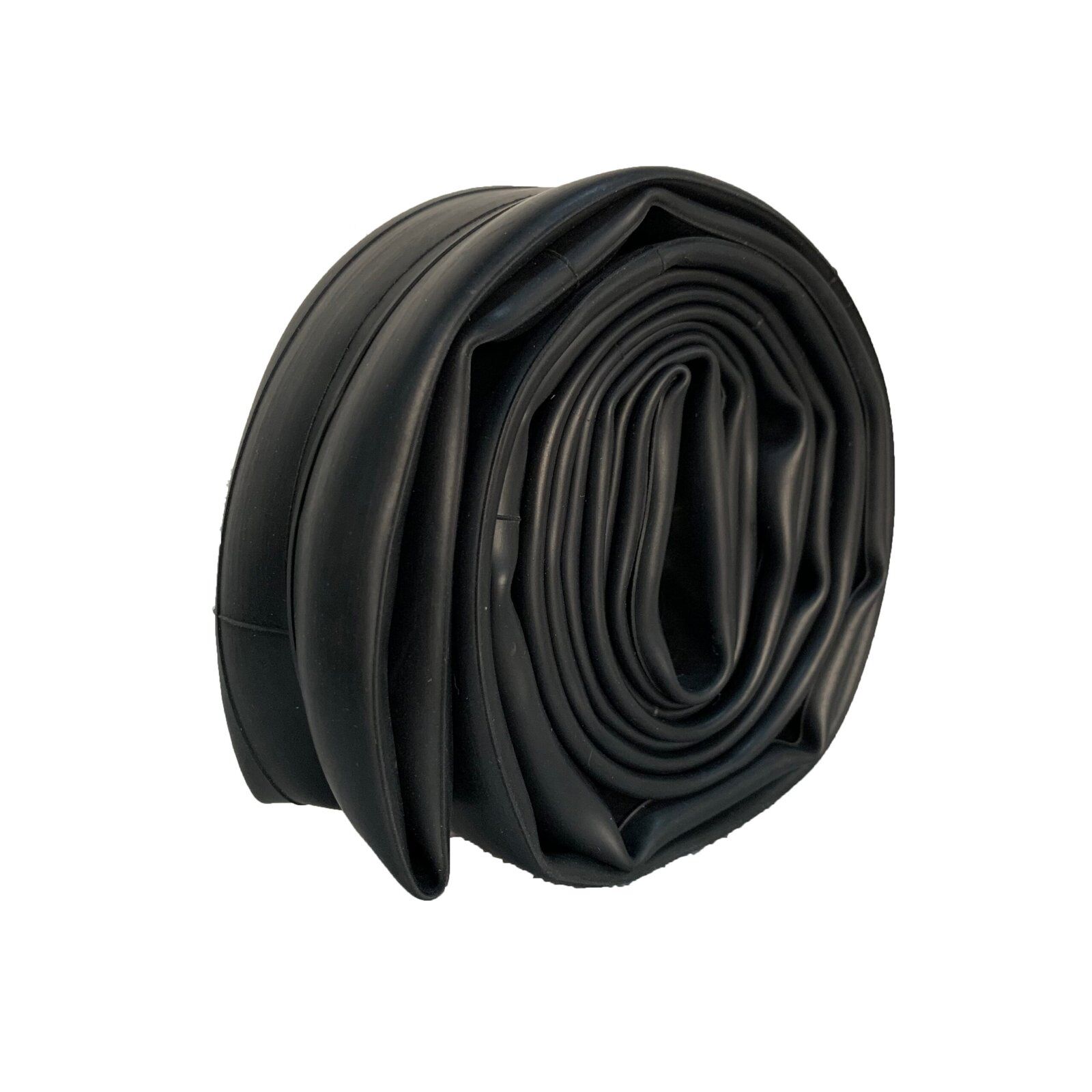

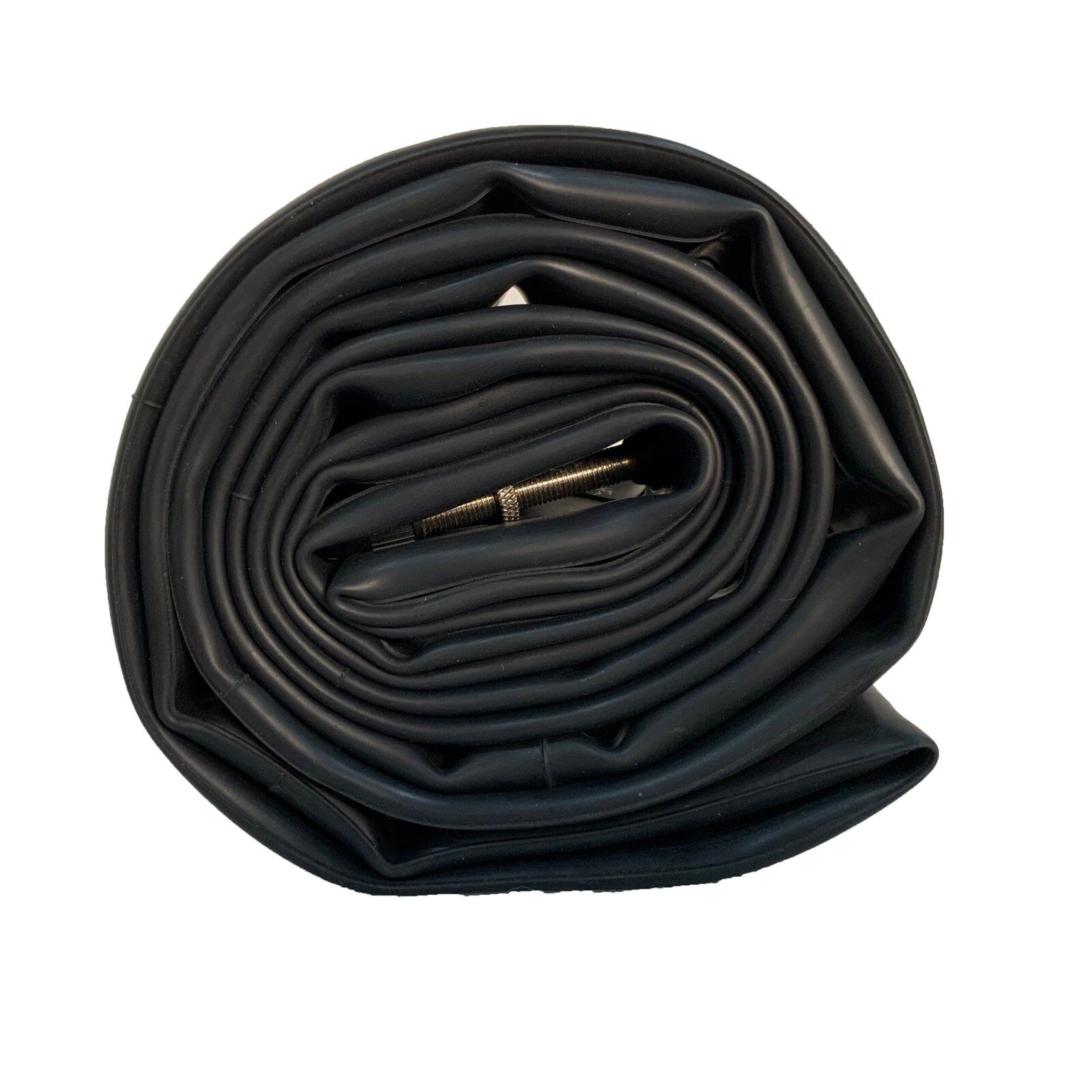

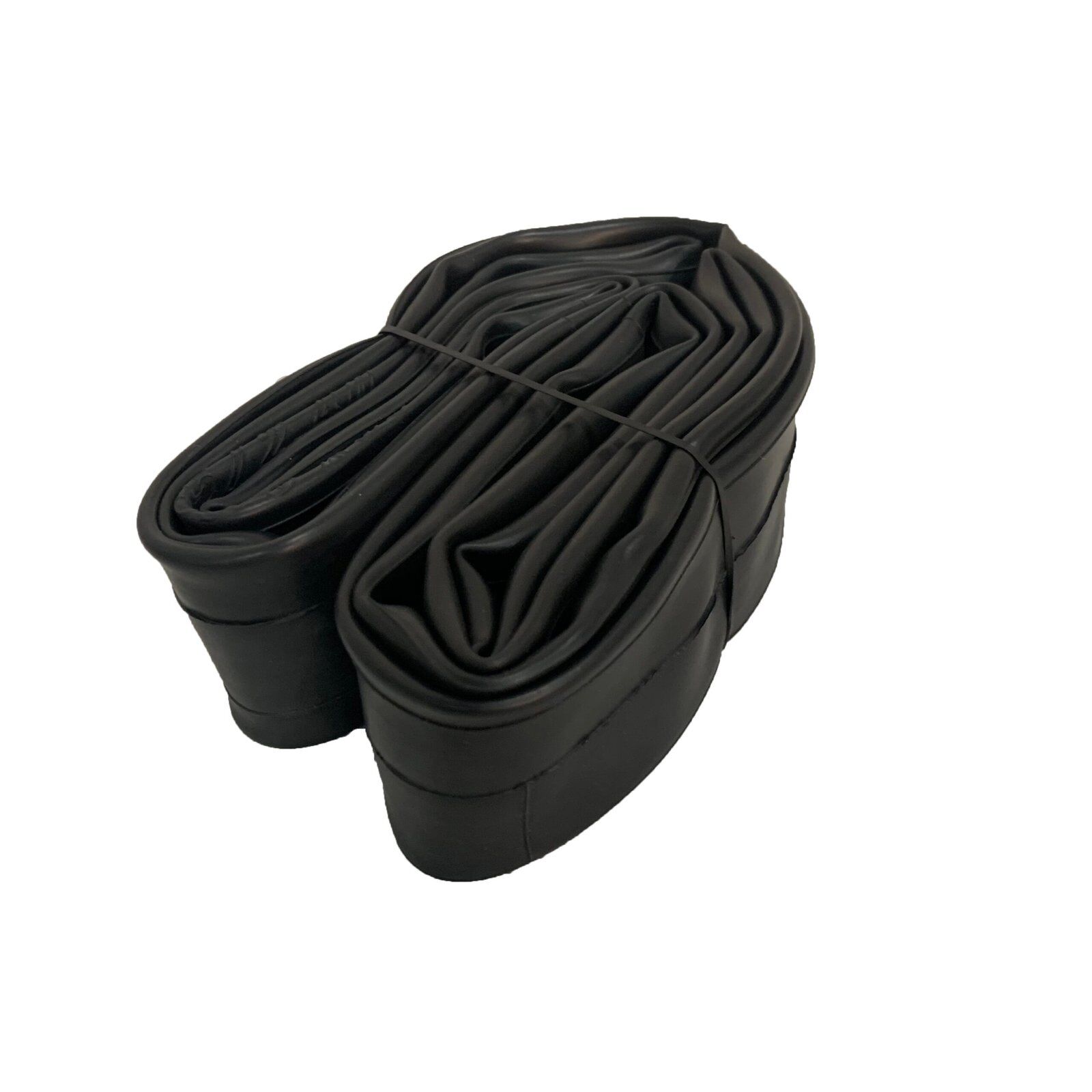

Puncture Resistant Tube ( Self-Sealing Tube)

Category Tag

The bicycle puncture resistant tube is also made of butyl rubber but with self-sealing fluid inside.  The self-sealing fluid seals holes up to 3mm.  It will apply you to use for up to 24 hours before the inner tube needs to be replaced.

Additional information

Size

10—29 inches

package

Color box, Plastic Shinking bag

Valve

AV, AV40mm, DV, DV40mm, FV, FV40mm, FV60mm, FV80mm

Others

Other information, please check below product details.

Structure&Process

The butyl inner tube formula includes several parts: skeleton material, filler, vulcanization system, processing aid, anti-aging agent
  • The skeleton materials mainly include butyl rubber, butyl rubber reclaimed rubber, and EPDM rubber.
  • The main fillers are carbon black, calcium rubber, etc.
  • Vulcanization system: The vulcanization system of the butyl inner tube is more complicated and should be adjusted according to equipment and process conditions. The vulcanization system is mainly M+TT.
  • Processing aids: mainly paraffin oil, if necessary, add some tackifying resins, etc., stearic acid, ointment, and other lubricants can also be used.
  • Anti-aging agent: Mainly use 4020, 4010NA and paraffin, etc.
  • Every tube also needs a valve, which is bonded to the tube during the vulcanizing process.
Rubber Mixing–Filter–Extrusion–Joint–Vulcanize–Inspection–Fold–Packing

Product details:

How Does It Work?

Puncture Resistant tubes are often used for long-distance riding to avoid being unable to ride due to nails and sharp stones piercing the tires in rough roads. The self-sealing fluid in the tube will rush to the damaged hole due to the pressure and the fiber component in the fluid will be quickly repaired.



IFAN Self -Sealing Fluid:







BASIC INFORMATION



Product Butyl Bicycle Tube Palce of Origin Jiangsu, China
OEM Yes Warantee 2 years
Brand Ifan Material Butyl Rubber
Quality A Grade Color Black
Production Capacity 1,500,000pcs/month Delivery Time 30–40 days





VALVE TYPE



AV Schrader, Auto, Moto. Length 35 mm.
DV Bicycle, Woods, Hollands. Length 26.5 mm or 40 mm.
FV Presta, Sclaverand, French. Length 33 mm/40mm/60mm/80mm.
CR202 Bent valve. Length 45mm

ITEM LIST



SIZE ALSO FITS (Etrto Code) Weight  width (mm)
10×2.125 10×2 (54/64-152) 71g 50
121/2 x 21/4 12×1.75, 11×13/4, 10×15/8 (44/46-194/222) 74g 42
14×1.75/2.125 14×2.125 (47/57-254) 93g 42
16×1.50/1.75 16×1.75-1.90 ( 40/50-305) 95g 38
16×1.75/2.125 16×1.90-2.125 (47/57-305) 108g 42
16×3.0 16×3.0 (80-305) 194g 76
16×2.125 16×2.20-2.50 (57/64-305) 125g 50
18×1.75/2.125 18×1.90-2.125 (47/57-355) 122g 42
18×2.125 18×2.20-2.50 (57/64-355) 142g 50
20×1 3/8 20×11/8-11/4,500A (28/40-438/451) 117g 33
20×1.50/1.75 20×1.75-1.90 (40/50-406) 127g 38
20×1.75/2.125 (20×1.90-2.125 47/57-406)20×13/4 144g 20
20×2.125 20×2.10-2.50 (54/64-406)20x2x13/4 168g 50
20×2.3 20×2.50 (54/62-406) 191g 57
20×3.0 20×2.75/3.0 (70/75-406) 280g 76
20×4.0 20×4.0 (108-406) 416g 98
22×1.75/2.125 22×1.90-2.125 (47/57-457) 154g 42
24×13/8 24×13/8-11/2,600A (28/40-534/547) 134g 33
24×1.50/1.75 24×1.75-1.90 (40/50-507) 152g 38
24×1.75/2.125 24×1.90-2.125 (47/57-507) 172g 42
24×2.125 24×2.10-2.60 (54/67-507) 199g 50
24×3.0 20×2.75/3.0 (70/75-507) 364g 76
24×4.0 20×4.0 (108-507) 503g 98
26×13/8 26×11/2-15/8, 650A/B  (32/44-571/597) 150g 33
26×1.50/1.75 26×1.75-1.90 (40/50-559) 167g 38
26×1.75/2.125 26×1.95-2.125 (52/57-559) 189g 42
26×2.125 26×2.10-2.60 (54/67-559) 219g 50
26x2x1 3/4 26x2x1 1/2(57-559) 251g 55
26×2.4 26×2.75 (57/62-559) 273g 60
26×4.0 26×4.8 (108/116-559) 555g 98
700X18/25C 27×3/4-1,700x18c-23c (18/23-622/630) 109g 23
27×1 700×25-28c (25/28-622/630) 115g 24
27×11/4 27×11/8-13/8-11/2,  28×11/8-13/8,  700×28-35c(28/37-609/642) 144g 30
700×35/45C 700x32c-47c, 28×15/8×13/8-1.75 (28/47-609/642) 175g 33
28×11/2 28×15/8×11/8 (40/44-635) 182g 38
27.5×1.75/2.125 27.5×1.95-2.125 (52/57-584) 197g 42
27.5×2.10/2.35 27.5X2.25 (54/67-584) 229g 50
29×1.75 29×1.75-2.35,700x47c-52c(47/57-622) 206g 42
29×2.125 29×2.25 (54/67-622) 247g 50
